• OpenSSH is the open-source version of the Secure Shell (SSH) tools used by administrators of Linux and other non-Windows for cross-platform management of remote systems. Beginning with Windows 10 build 1809 and Windows Server 2019, OpenSSH is available as a feature on demand.
  • OpenSSH for Windows has the following commands built in:
    • ssh is the SSH client component that runs on the user’s local system
    • sshd is the SSH server component that must be running on the system being managed remotely
    • ssh-keygen generates, manages and converts authentication keys for SSH
    • ssh-agent stores private keys used for public key authentication
    • ssh-add adds private keys to the list allowed by the server
    • ssh-keyscan aids in collecting the public SSH host keys from hosts
    • sftp is the service that provides the Secure File Transfer Protocol, and runs over SSH
    • scp is a file copy utility that runs on SSH

Prerequisites check:

To validate your environment, open an elevated PowerShell session and do the following:

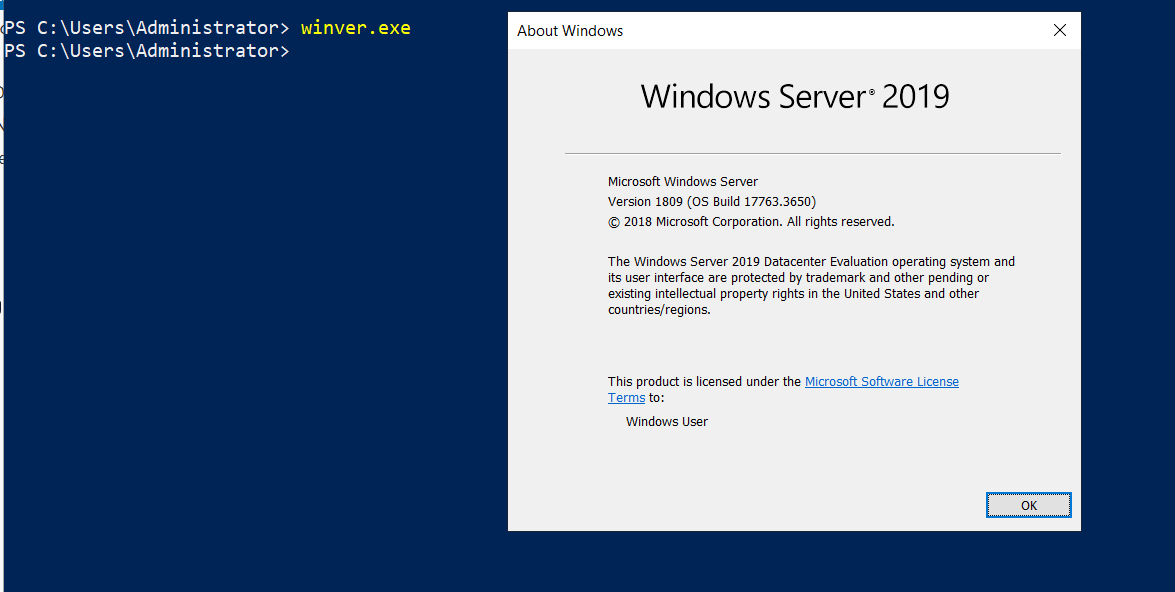

  • Enter winver.exe and press enter to see the version details for your Windows device. ossh_1
  • Run $PSVersionTable.PSVersion. Verify your major version is at least 5, and your minor version at least 1. Learn more about installing PowerShell on Windows. ossh_2
  • To check when you’re an administrator, run the following command. The output shows True when you’re a member of the built-in Administrators group.
(New-Object Security.Principal.WindowsPrincipal([Security.Principal.WindowsIdentity]::GetCurrent())).IsInRole([Security.Principal.WindowsBuiltInRole]::Administrator)

ossh_3

Installing OpenSSH server:

  1. Open windows server 2019, Run powershell as administrator
  2. Checking availability of OpenSSH:
Get-WindowsCapability -Online | Where-Object Name -like 'OpenSSH*'

ossh_4 3. Installing Open ssh server:

Add-WindowsCapability -Online -Name OpenSSH.Server~~~~0.0.1.0

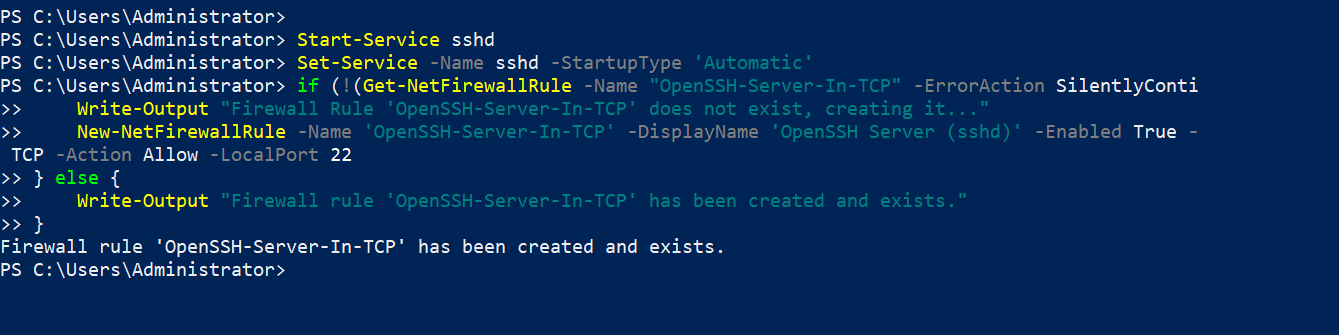

ossh_5 4. To start and configure OpenSSH Server for initial use, open an elevated PowerShell prompt (right-click, then select Run as an administrator), then run the following commands to start the sshd service:

# Start the sshd service
Start-Service sshd

# OPTIONAL but recommended:
Set-Service -Name sshd -StartupType 'Automatic'

# Confirm the Firewall rule is configured. It should be created automatically by setup. Run the following to verify
if (!(Get-NetFirewallRule -Name "OpenSSH-Server-In-TCP" -ErrorAction SilentlyContinue)) {
    Write-Output "Firewall Rule 'OpenSSH-Server-In-TCP' does not exist, creating it..."
    New-NetFirewallRule -Name 'OpenSSH-Server-In-TCP' -DisplayName 'OpenSSH Server (sshd)' -Enabled True -Direction Inbound -Protocol TCP -Action Allow -LocalPort 22
} else {
    Write-Output "Firewall rule 'OpenSSH-Server-In-TCP' has been created and exists."
}

ossh_6

Openssh server misconfigs:

  1. We need to confirm that password authentication is enabled: ossh_7
notepad C:\ProgramData\ssh\sshd_config
  • Look for the line #PasswordAuthentication yes. Remove the # at the beginning to uncomment it. If the line says PasswordAuthentication no, change it to yes. ossh_8
  1. Restart the sshd service
Restart-Service sshd

Creating a vulnerable user:

  1. In the same PowerShell or a Command Prompt (as Administrator), run the following command. We’ll create a user named victim with the password Password123.
net user victim Password123 /add

Add another user

New-LocalUser -Name "sysadmin" -Password (ConvertTo-SecureString "Password123" -AsPlainText -Force)

ossh_9

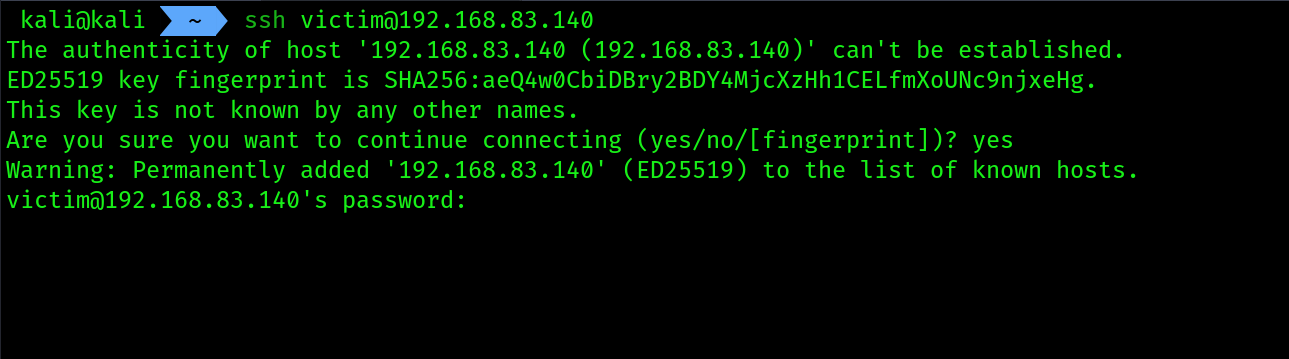

  1. Now let’s try to connect using our kali machine using the command:
ssh USERNAME@WINDOWS_SERVER_IP

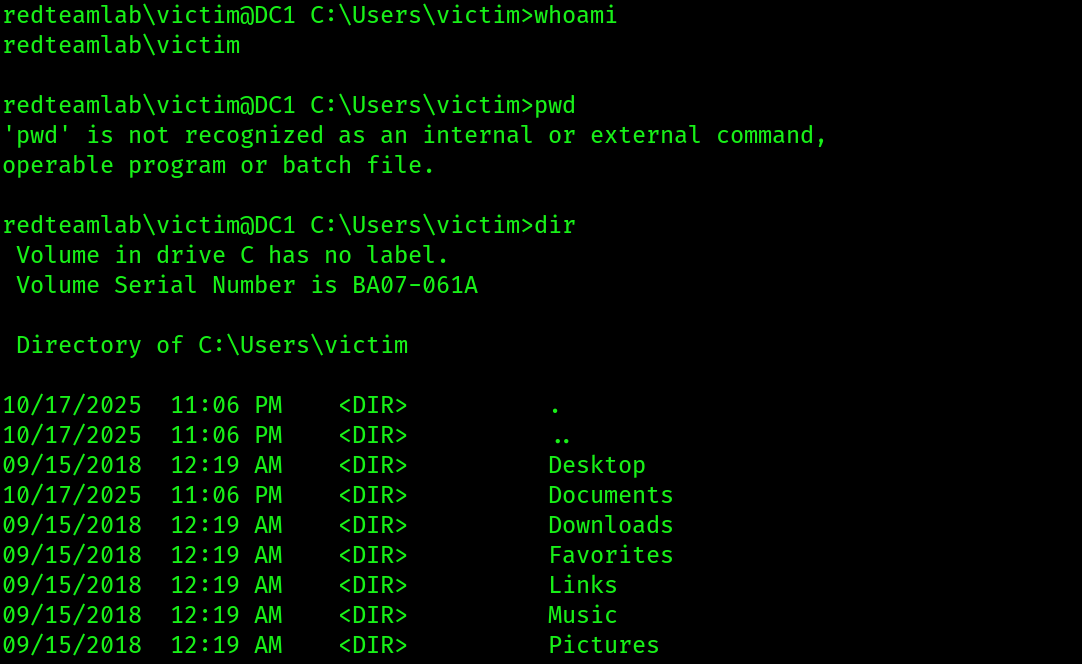

ossh_10 ossh_11 OUR VULNERABLE SERVER IS SETUP TO PERFORM SOME ATTACKS, LET’S DO IT ON THE NEXT SECTION.

Checking logs and setting up open shh log facility:

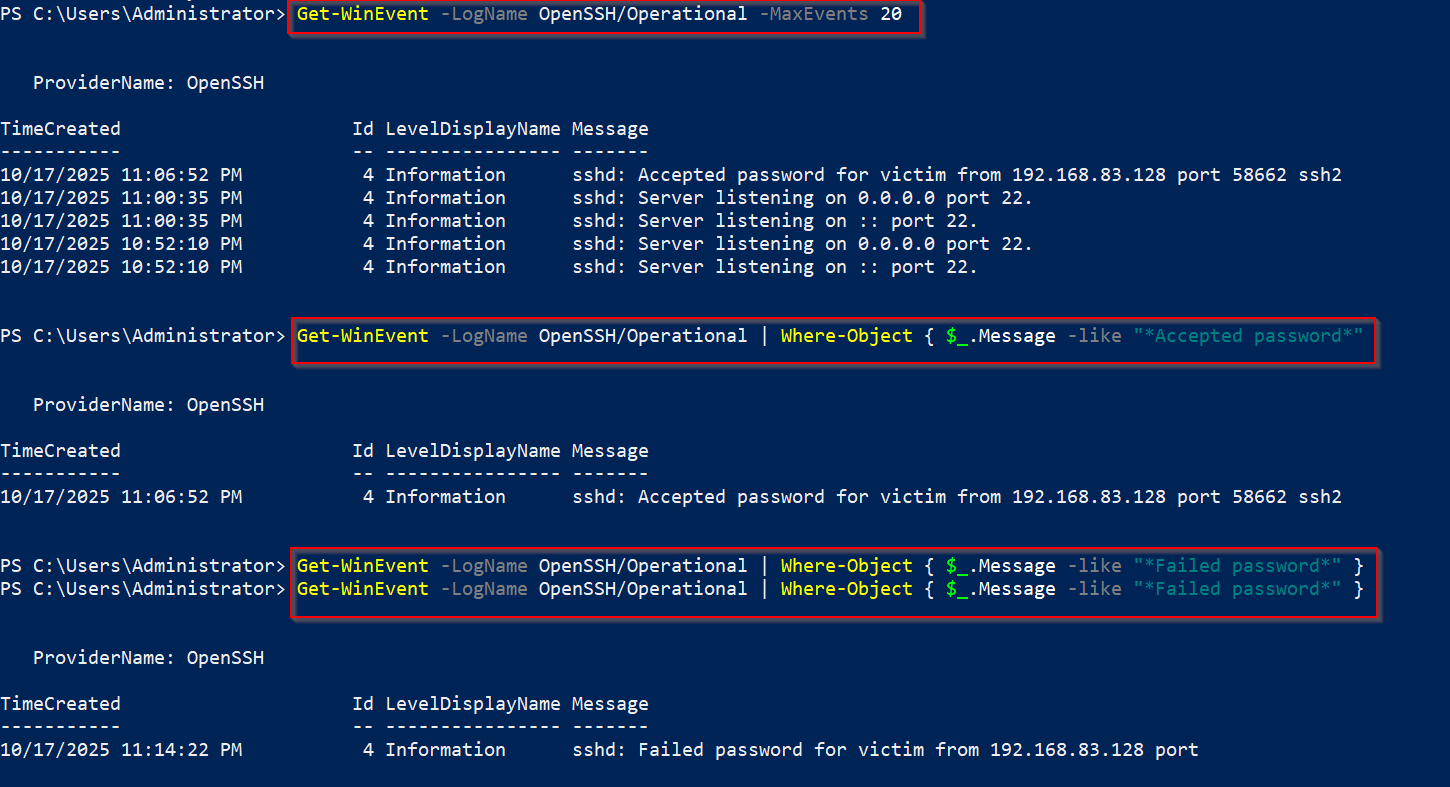

  1. By default the logs will be shown for ssh connections on the Event Viewer , let’s check them through some powershell commands:
# To see the last 20 log entries:
Get-WinEvent -LogName OpenSSH/Operational -MaxEvents 20

# To find only successful connections:
Get-WinEvent -LogName OpenSSH/Operational | Where-Object { $_.Message -like "*Accepted password*" }

# To find failed connections(brute-force scenario):
Get-WinEvent -LogName OpenSSH/Operational | Where-Object { $_.Message -like "*Failed password*" }

ossh_12 2. Setting up sshd.log from sshd_config file: 3. Open the config file using notepad and uncomment these two options: ossh_13 4. Then set the SyslogFacility AUTH to SyslogFacility LOCAL0 , LogLevel INFO is fine, or you can set LogLevel DEBUG 5. Restart sshd service

Restart-Service sshd
  1. After doing that, logs would start appearing in C:\ProgramData\ssh\logs\sshd.log ossh_14
